dbx ZonePRO 1260 12×6 Digital Zone Processor

Designed to offer superior system sonic performance and flexibility, the 1261/1261 deliver the highest quality tools available. Even the input and outputs connectors were chosen for their standard usage and reliability. The ZonePRO products offer Euroblock connectors for balanced signals and RCA connectors for interfacing with consumer equipment often used in commercial applications; there is also a simple analog input buss that allows inputs to be sent from one unit to the next for unit and job scalability. The 1261 provides every necessary processing tool, from the input processing like gain control and EQ available on all inputs to highly sophisticated and specific functions such as selectable paging microphone processing including Gating, De-Essing, Auto Gain Control, Compression and Feedback Suppression. The heart of the ZonePRO products is the Routing module that provides of course Primary Source Selection but also Source Ducking for Paging and Priority Override. The outputs also offer a wealth of processing designed for commercial applications like our patent-pending AutoWarmth function that was co-developed with JBL to provide natural low frequency extension at any signal level. Each output also offers EQ, Bandpass and Crossover filters, Limiting and Delay for system optimization. With the ZonePRO every tool is at your disposal to maximize the response of your system.

12 total inputs: six Europort balanced mic/line inputs, four unbalanced, mono-summed RCA source input pairs, S/PDIF input

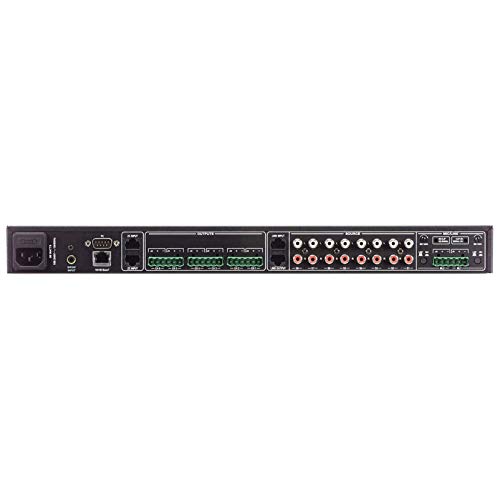

6 outputs: six electronically balanced, RF filtered Euroblock outputs
Frequency response: 20Hz – 20Khz, +/- 0. 5dB
6 mic preamps with 15V phantom power
27W power consumption
